This web page will be for nothing but spectra of lasers.
Ocean Optics USB2000 Spectrometer donated by P.L.
As of 10-10-07, I've been using a PC2000-ISA Spectrometer from Ocean Optics that I received several years ago, but that I didn't have a home for until now.
As of 03-08-08, I once again have the USB2000 spectrometer, enabling color spectra again.
LASERS (or "LAZERS" if you prefer to be incorrect):
Spectrographic analysis of the replacement Directly-Injected 5mW 488nm Greenish-Blue ("cyan") Laser Pen after several hours of lasing.
Spectrographic analysis of the replacement Directly-Injected 5mW 488nm Greenish-Blue ("cyan") Laser Pen after several hours of lasing; spectrometer's response narrowed to a band between 485nm and 495nm to pinpoint wavelength, which is 489.410nm -- same as before.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 488poi3.txt
Spectrographic analysis of the replacement Directly-Injected 5mW 488nm Greenish-Blue ("cyan") Laser Pen.
Spectrographic analysis of the replacement Directly-Injected 5mW 488nm Greenish-Blue ("cyan") Laser Pen; spectrometer's response narrowed to a band between 485nm and 495nm to pinpoint wavelength, which is 489.410nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 488poi2.txt

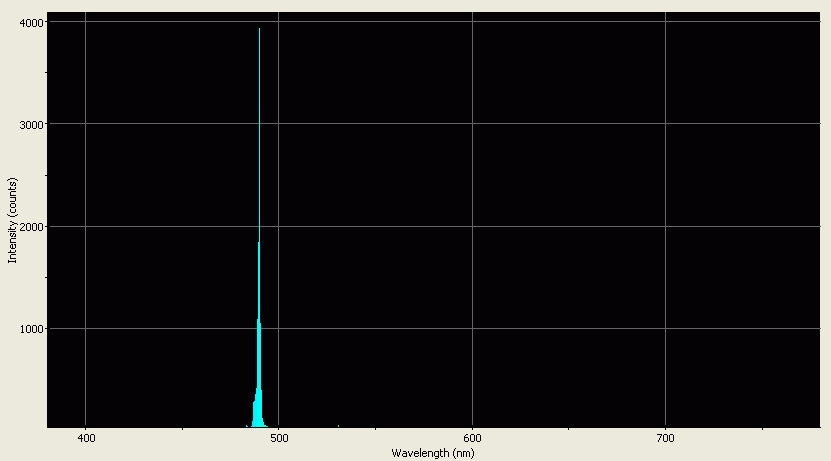

Spectrographic analysis of the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser; newest (01-13-13) spectrometer software & settings used.

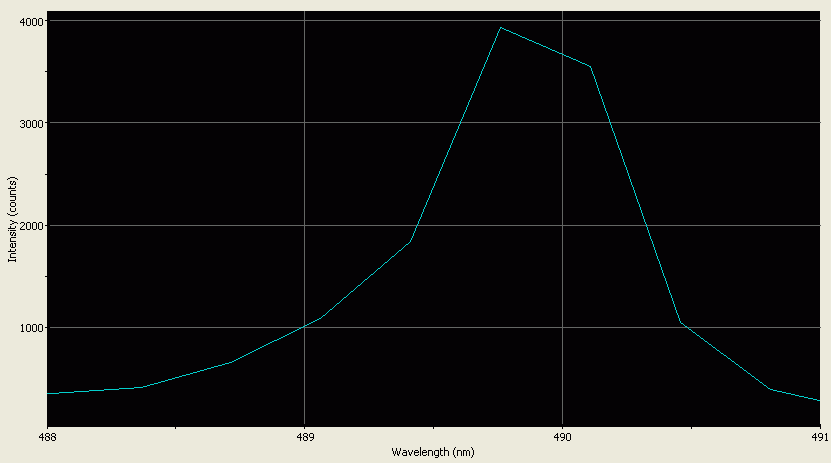

Spectrographic analysis of the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser (using newest {01-13-13} spectrometer software & settings); spectrometer's response narrowed to a band between 488nm and 491nm to pinpoint wavelength, which appears to be 489.760nm. Wavelength tolerance for the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser is +-10nm, so it is ***WELL*** within manufacturer's specs.
The raw spectrometer data (comma-delimited that can be loaded into Excel) is at http://www.tllm.site//42/novalux.txt

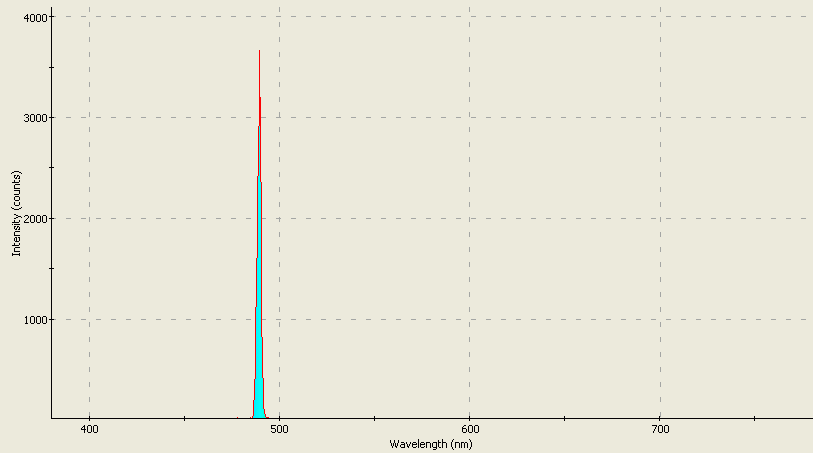

Post-adjustment spectrographic analysis of the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser.

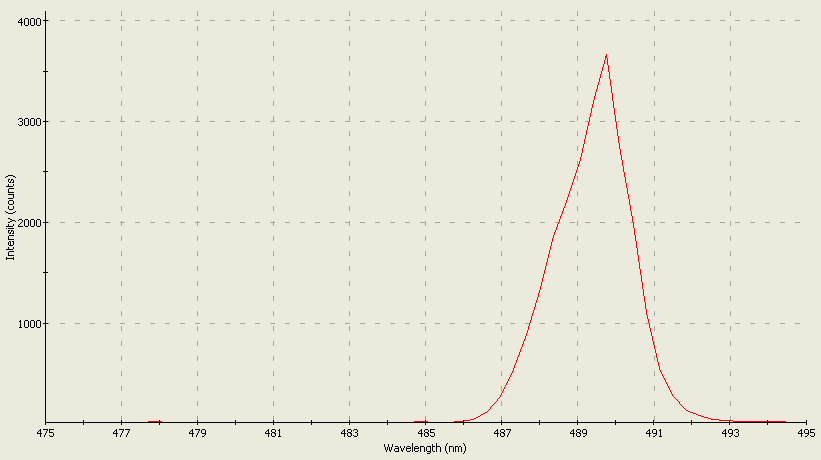

Post-adjustment spectrographic analysis of the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser; spectrometer's response narrowed to a range between 475nm and 495nm to pinpoint wavelength, which appears to be 489.80nm.

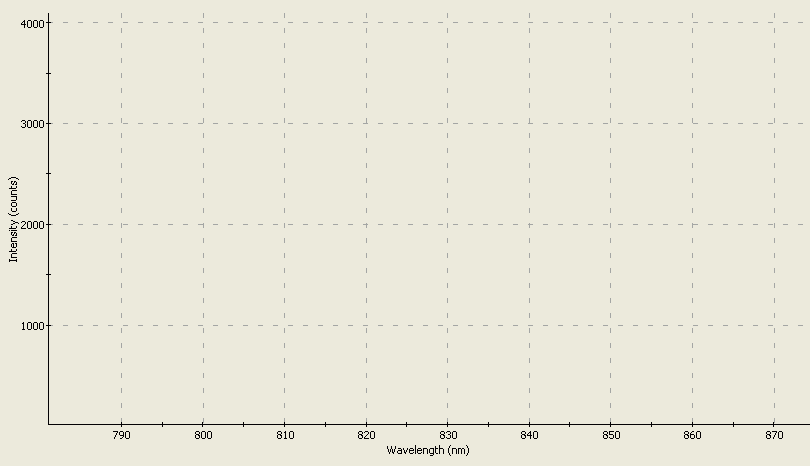

Post-adjustment spectrographic analysis of the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser to check for NIR emission from the pump diode; none was detected.
Output power when these spectra were taken was measured at 3.633mW.

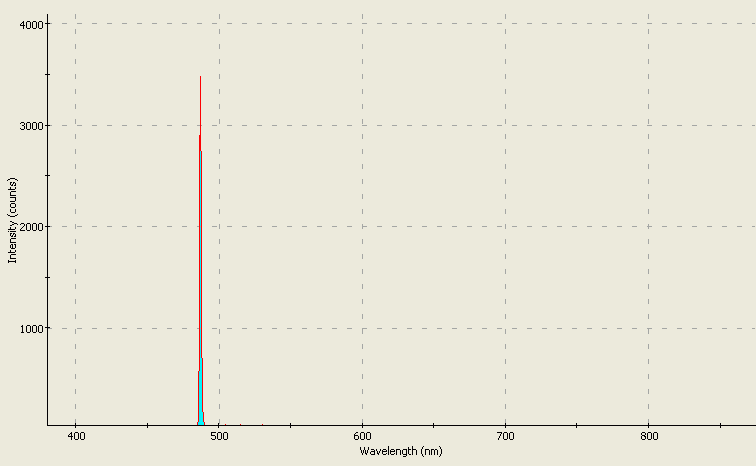

Spectrographic analysis of the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser.

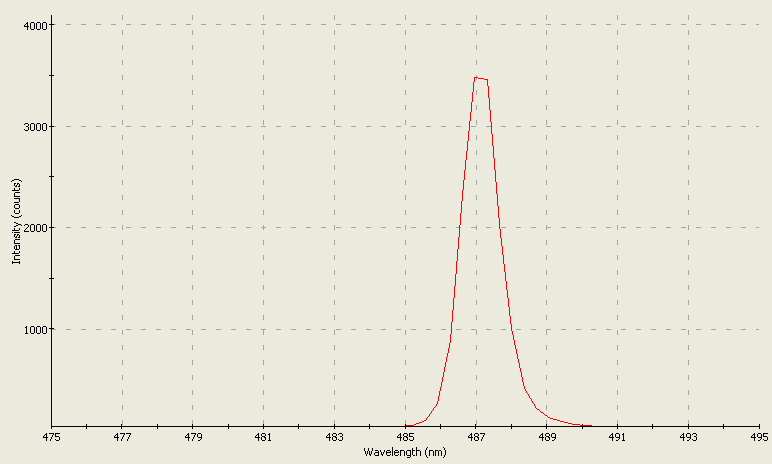

Spectrographic analysis of the Novalux Laser 2000 Protera Model 488-15 Blue-Green Laser; spectrometer's response narrowed to a range between 475nm and 495nm.
Spectrographic analysis of the Spectra-Physics 161B-060 Air-Cooled Argon Ion Laser.
Spectrographic analysis of the Spectra-Physics 161B-060 Air-Cooled Argon Ion Laser; spectrometer's response range narrowed to a band between 478nm and 498nm to help pinpoint wavelength. Color was left "on" because the trendline (thin red line) was still easily visible.
Spectrographic analysis of the Spectra-Physics 161B-060 Air-Cooled Argon Ion Laser; newer software settings used.
Spectrographic analysis of the Spectra-Physics 161B-060 Air-Cooled Argon Ion Laser; spectrometer's response range narrowed to a band between 478nm and 498nm to help pinpoint wavelength.
