SPECTRA OF SPECIAL COLOR LEDS

This web page will be for nothing but spectra of 10mm, 8mm, 5mm, 3mm, and SMD LEDS (driven at 20mA to 60mA; with the exception of the LED in the Motion-Sensing Spotlight):

Ocean Optics USB2000 Spectrometer donated by P.L.
As of 10-10-07, I've been using a PC2000-ISA Spectrometer from Ocean Optics that I received several years ago, but that I didn't have a home for until now.
As of 03-08-08, I once again have the USB2000 spectrometer, enabling color spectra again.
As of 09-19-09, I no longer have the PC2000-ISA; it was sold to prevent an eviction.

SPECIAL COLOR LEDS; SPECTROMETER'S RESPONSE BAND NARROWED:

Spectrographic analysis of the (phosphor yellow) LEDs in the LumaRay FL12RX Fog.
Spectrometer's response narrowed to a range between 530nm and 590nm to pinpoint phosphor peak wavelength, which is 563.907nm.

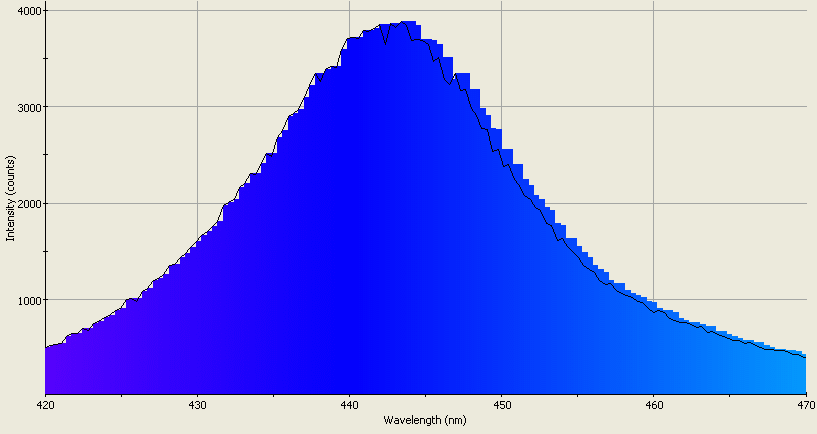

Spectrographic analysis of an ETG-5AX420-15 phosphor purple LED; spectrometer's response narrowed to a band between 420nm and 470nm to pinpoint native peak emisssion wavelength, which is 443.660nm.

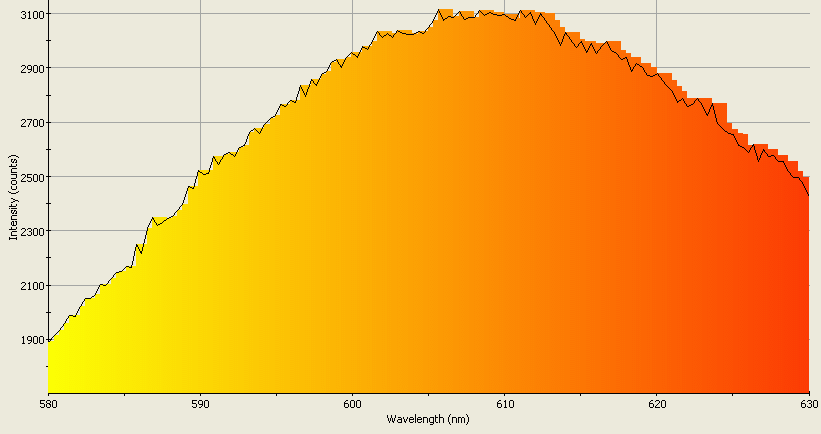

Spectrographic analysis of an ETG-5AX420-15 phosphor purple LED; spectrometer's response narrowed to a band between 580m and 630nm to pinpoint phosphor peak emisssion wavelength, which is 605.115nm.

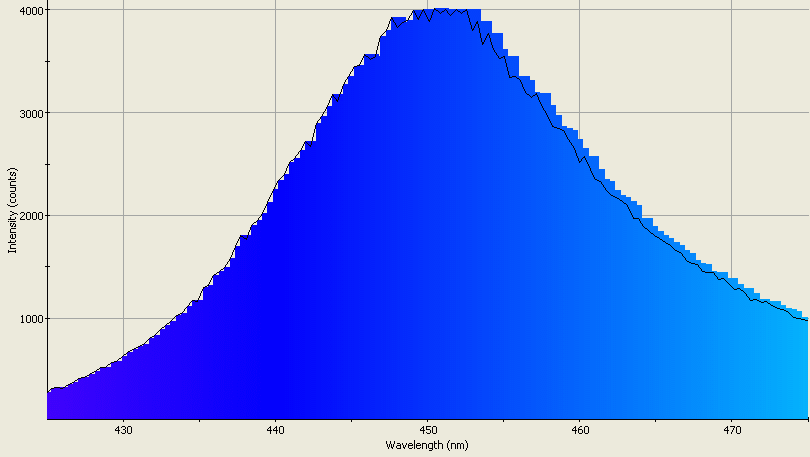

Spectrographic analysis of an ETG # ETG-5AX440-45-D phosphor pink LED; spectrometer's response narrowed to a range between 425nm and 475nm to pinpoint this LED's native emission, which peaks at 450.150nm.
