NARROWBAND SPECTRA OF BLUE LEDs (NEWEST {03-25-12 and 01-13-13} SPECTROMETER SOFTWARE SETTINGS USED)
Spectrographic analysis of the blue "battery status" LED in the HeiyRC DST-01 RGW Universal Drone Strobe Light; spectrometer's response band narrowed to a range between 440nm and 460nm to pinpoint emission peak wavelength, which 452.590nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at hiyrc-b.txt
Spectrographic analysis of one of the blue LEDs in the 20-Count Holiday Time Battery-Operated Multi-Color LED ; spectrometer's response narrowed to a band between 445nm and 465nm to pinpoint emission peak wavelength, which is 455.060nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at htb.txt
Spectrographic analysis of the blue LEDs in the Lighted Halloween Witch Hat Decoration; spectrometer's response narrowed to a band between 450nm and 470nm to pinpoint emission peak wavelength, which is 460.340nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at witchb.txt
Spectrographic analysis of the blue LEDs in the Lighted Halloween Ghost Hat Decoration; spectrometer's response narrowed to a band between 450nm and 460nm to pinpoint emission peak wavelength, which is 454.350nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at ghostb.txt
Spectrographic analysis of the LED in the Star Wars "Firefly" Light-Up Lightsaber Toothbrush; spectrometer's response narrowed to a band between 450nm and 470nm to pinpoint emission peak wavelength, which is 458.93nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at swtooth.txt
Spectrographic analysis of the LED in the USB-Rechargeable Glow Cigarette Lighter (3); spectrometer's response narrowed to a band between 445nm and 465nm to pinpoint emission peak wavelength, which is 455.060nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at glowl3-2 .txt
Spectrographic analysis of the blue LEDs in the LED ''OPEN'' Sign.
Spectrometer's response narrowed to a band between 445nm and 465nm to pinpoint peak wavelength, which is 451.180nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at openb.txt
Spectrographic analysis of the blue backlighting LED in the WeighMax Digital Pocket Scale; spectrometer's response narrowed to a band between 440nm and 480nm to pinpoint peak wavelength, which is 462.108nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at scale2.txt
Spectrographic analysis of the LED in the USB-Rechargeable Glow Cigarette Lighter (2); spectrometer's response narrowed to a band between 450nm and 470nm to pinpoint emission peak wavelength, which is 463.150nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at glow1.txt
Spectrographic analysis of the LED backlight in the Flameless Dual Arc Electric Lighter; spectrometer's response narrowed to a band between 450nm and 470nm to pinpoint peak wavelength, which is 463.15nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at usbl3.txt
Spectrographic analysis of the LEDs in the Rechargeable Double-Arc Electric Lighter; spectrometer's response narrowed to a band between 450nm and 470nm to pinpoint peak wavelength, which is 460.340nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at usbl.txt
Spectrographic analysis of the blue LED in the Easter Light-Up Flying Disc; spectrometer's response narrowed to a band between 440nm and 460nm to pinpoint emission peak wavelength, which is 451.180nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at lufd-b.txt
Spectrographic analysis of the blue LEDs in the 50xLED Battery Operated Mini Lights; spectrometer's response narrowed to a band between 445nm and 465nm to pinpoint the peak emission wavelength, which is 455.06nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 50bob.txt
Spectrographic analysis of the blue LEDs in the 20x LED "Snowflake" Color-Changing Lights; spectrometer's response narrowed to a band between 440nm and 460nm to pinpoint the peak emission wavelength, which is 451.180nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 20snowb.txt
Spectrographic analysis of the blue LEDs in the 50xLED Battery Operated Sound Synch Wire Lights; spectrometer's response narrowed to a band between 445nm and 475nm to pinpoint the peak emission wavelength, which is 463.150nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 50ssb.txt
Spectrographic analysis of the blue, "charge cycle in progress" LED in the Ulanzi DR-01 RGB Drone Strobe Light; spectrometer's response band narrowed to a range between 455nm and 475nm to pinpoint emission peak wavelength, which is 464.560nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at dsl-b.txt
Spectrographic analysis of the LED in the USB-Rechargeable Glow Cigarette Lighter; spectrometer's response narrowed to a band between 450nm and 470nm to pinpoint emission peak wavelength, which is 463.150nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at usbliter.txt
Narrowband spectrographic analysis of the blue LEDs in the Holiday Time 100 LED Multicolor Lights; spectrometer's response narrowed to a band between 445nm and 465nm to pinpoint peak wavelength, which is 451.180nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at ht100-b.txt

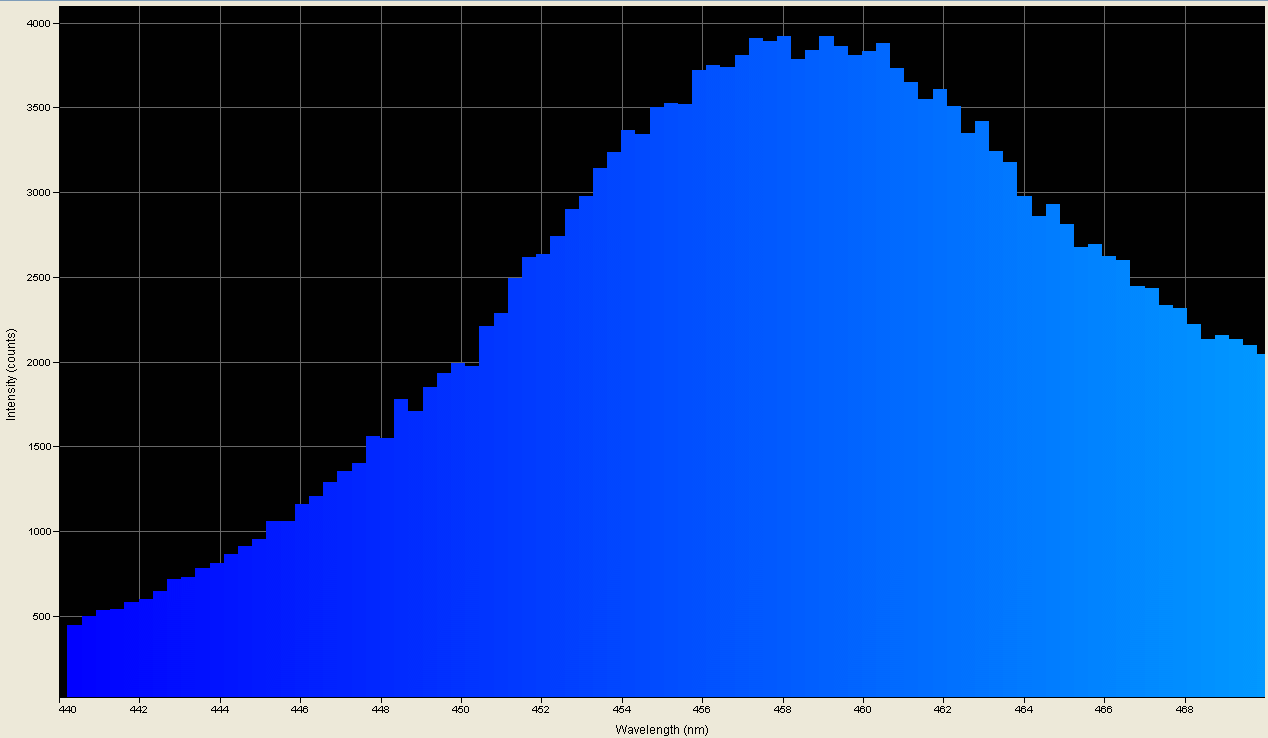

Spectrographic analysis of the blue LEDs in the 200x Multicolor LED Battery-Operated Timer Lights; spectrometer's response narrowed to a band between 440nm and 470nm to pinpoint the peak emission wavelength, which is 457.870nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 200fesb.txt

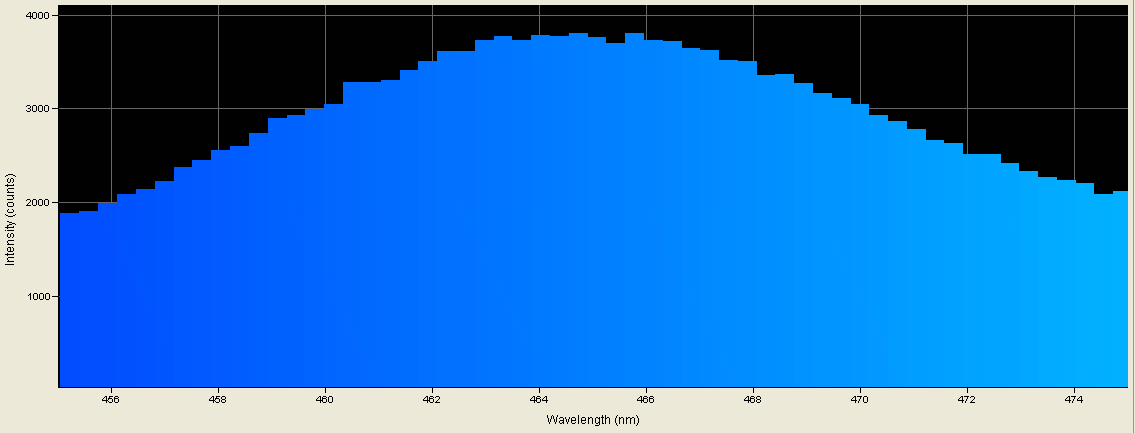

Spectrographic analysis of the LEDs in the Blue LED Wristwatch; spectrometer's response narrowed to a band between 455nm and 475nm to pinpoint emission peak wavelength, which is 465.61nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at bluwatch.txt
Spectrographic analysis of the blue LEDs on the undercarriage of the Quadrone Tumbler 2.0 Camera Drone; spectrometer's response narrowed to a band between 450nm and 460nm to pinpoint emission peak wavelength, which is 454.700nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at quadb.txt
Spectrographic analysis of the LED in the Nitecore TUBE LED Keylightthat indicates, "Charge cycle in progress"; spectrometer's response narrowed to a band between 450nm and 460nm to pinpoint peak wavelength, which is 457.170nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at tubech.txt
Spectrographic analysis of the LED in the Avion FlyCloud R/C Airplane; spectrometer's response narrowed to a band between 450nm and 460nm to pinpoint emission peak wavelength, which is 452.590nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at flycloud.txt
Spectrographic analysis of the blue LEDs on the forward sections of the fuselage of the CHEERSON CX-33C Hexcopter w/ Camera; spectrometer's response narrowed to a band between 449nm and 459nm to pinpoint emission peak wavelength, which is 452.590nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at sy-x25-b.txt

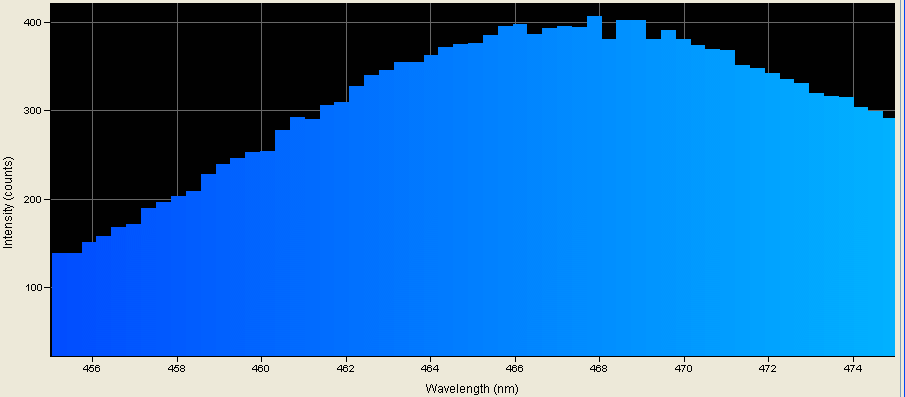

Spectrographic analysis of the LEDs in the HZ5 Blue LED Sports Watch with Rubber Band; spectrometer's response narrowed to a band between 455nm and 465nm to pinpoint peak wavelength, which is 468.420nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 234blu.txt

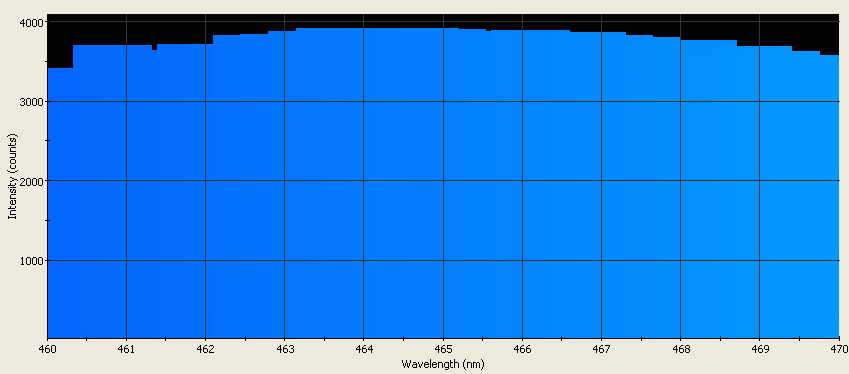

Spectrographic analysis of the LEDs in the Glo-Toob Lithium; spectrometer's response narrowed to a band between 460nm and 470nm to pinpoint emission peak wavelength, which is 463.850nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at glo-toob.txt
