SPECTRA OF LOW-POWERED RED LEDs (NEWEST {03-25-12 and 01-13-13} SPECTROMETER SOFTWARE SETTINGS USED) (Pg. 2)


This web page will be for nothing but spectra of 10mm, 8mm, 5mm, 3mm, and SMD LEDS (driven at 20mA to 60mA):

Ocean Optics USB2000 Spectrometer donated by P.L.
As of 10-10-07, I've been using a PC2000-ISA Spectrometer from Ocean Optics that I received several years ago, but that I didn't have a home for until now.
As of 03-08-08, I once again have the USB2000 spectrometer, enabling color spectra again.
As of 09-19-09, I no longer have the PC2000-ISA; it was sold to prevent an eviction.




RED LEDs (NEWEST {03-25-12 and 01-13-13} SPECTROMETER SOFTWARE SETTINGS USED)


Spectrographic analysis of one of the LEDs in the Antler Light-Up (Christmas) Headband.



Spectrographic analysis of one of the red LEDs in the 20 Battery-Operated Multi-Color LED Mini Lights; spectrometer's response narrowed to a band between 620nm and 640nm to pinpoint the peak wavelength, which is 628.010nm.

The raw spectrometer data (tab-delimited that can be loaded into Excel) is at htr.txt



Spectrographic analysis of one of the red LEDs in the 20-Count Holiday Time Battery-Operated Multi-Color LED .



Spectrographic analysis of the LEDs in the Luxury Men's Fashion LED Digital Wristwatch.



Spectrographic analysis of the red LEDs in the Shun X1 SAFEGUARD All-Purpose Bike Warning Light.



Spectrographic analysis of the red LEDs in the LED ''OPEN'' Sign.
Newer spectrometer software & settings used.
That "hump" in the blue is from the blue LEDs and may be safely disregarded.



Spectrographic analysis of the red LED in the GIZMOS "Star Master" LED Star Projector.



Spectrographic analysis of the LED in the American Opto Plus LED Tester.



Spectrographic analysis of the red LEDs in an unknown brand of battery-operated Christmas light set.



Spectrographic analysis of the red LEDs in the Holiday Time 100 LED Multicolor Lights.

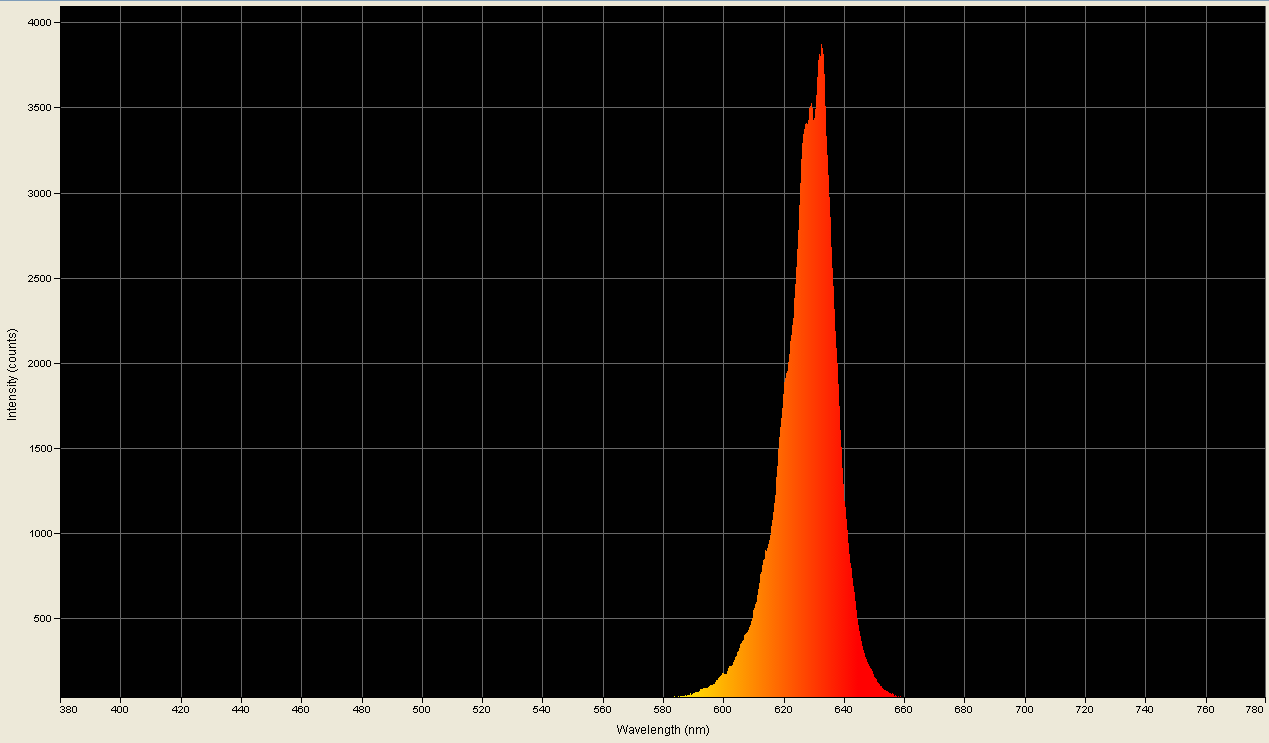

Spectrographic analysis of the LEDs in the Red 3-Function 18-LED Ultra-Slim Wire Light Set.



Spectrographic analysis of the red LEDs on the undercarriage of the Quadrone Tumbler 2.0 Camera Drone.



Spectrographic analysis of the LEDs in the LED Sports Bracelet Watch with Candy Color Rubber Lava Band watch.



Spectrographic analysis of the red LEDs on the back section of the fuselage of the CHEERSON CX-33C Hexcopter w/ Camera.



Spectrographic analysis of the red LEDs (through a red-tinted diffuser) on the back section of the fuselage of the SY X25 R/C Flying Car w/ Camera.



Spectrographic analysis of the LEDs in the Touch Screen Red LED Watch with Rectangle Dial and Silicone Band.



Spectrographic analysis of the red LED in the tail boom of the UDI U12A R/C Camera Helicopter.



Spectrographic analysis of the red LED in the Cigarette Lighter/Flashlight; newest (03-10-15) spectrometer software settings used.



Spectrographic analysis of the LED (safety wand mode) in the Life+Gear Glow Red Lightstick/Whistle; newest (01-13-13) spectrometer software settings used.



Spectrographic analysis of one of the red LEDs on the undercarriage of the UDI U818A 2.4GHz 4-Ch. 6-Axis Gyro R/C Quadcopter w/ Camera.



Spectrographic analysis of the one of the red LEDs in the side of the Syma S033G R/C Coaxial Helicopter (with Li:Poly battery)'s fuselage.



Spectrographic analysis of the red LED in the tail boom of the UDI U13A R/C Camera Helicopter.



Spectrographic analysis of the LEDs in the Beam N Read® Pilot (no filter).



Spectrographic analysis of the white LEDs in the Life+Gear 9x White LED + 1x Red LED Flashlight & Signal Light.



Spectrographic analysis of the white LEDs in the Life+Gear 9x White LED + 1x Red LED Flashlight & Signal Light; spectrometer's response narrowed to a band between 435nm and 445nm to pinpoint native emission peak wavelength, which is 440.220nm

The raw spectrometer data (comma-delimited that can be loaded into Excel) is at /46/lg-9-w.txt



Spectrographic analysis of the red LED in the Life+Gear 9x White LED + 1x Red LED Flashlight & Signal Light.



Spectrographic analysis of the one of the red LEDs in the side of the Syma S031G R/C Coaxial Helicopter (with Li:Poly battery)'s fuselage.



Spectrographic analysis of the rear (red) LED in the AMG Twin Propeller RTF R/C Stunt Airplane.



Spectrographic analysis of the red "binded" LED in the HobbyZone® Champ RTF R/C Airplane's fuselage.



Spectrographic analysis of the "power" LED in the Vivitar DVR 748HD Digital Still/Video Camera.



Spectrographic analysis of the red "power" LED in the Tx for the Air Pigs Jet Set Slingshot R/C Airplane.



Spectrographic analysis of the "photo/video being shot" LED in the Tx of the Air Hogs Hawk Eye Blue Sky R/C Airplane with Onboard Camera.



Spectrographic analysis of the LED in the Air Hogs Hawk Eye Blue Sky R/C Airplane with Onboard Camera.



Spectrographic analysis of the LED in the Novelty Lanyard Light made for Tulalip Casino.
