SPECTRA OF LOW-POWERED RED LEDS


This web page will be for nothing but spectra of 10mm, 8mm, 5mm, 3mm, and SMD LEDS (driven at 20mA to 60mA):

Ocean Optics USB2000 Spectrometer donated by P.L.
As of 10-10-07, I've been using a PC2000-ISA Spectrometer from Ocean Optics that I received several years ago, but that I didn't have a home for until now.
As of 03-08-08, I once again have the USB2000 spectrometer, enabling color spectra again.
As of 09-19-09, I no longer have the PC2000-ISA; it was sold to prevent an eviction.



SPECTRA OF RED LEDs

Spectrographic plot

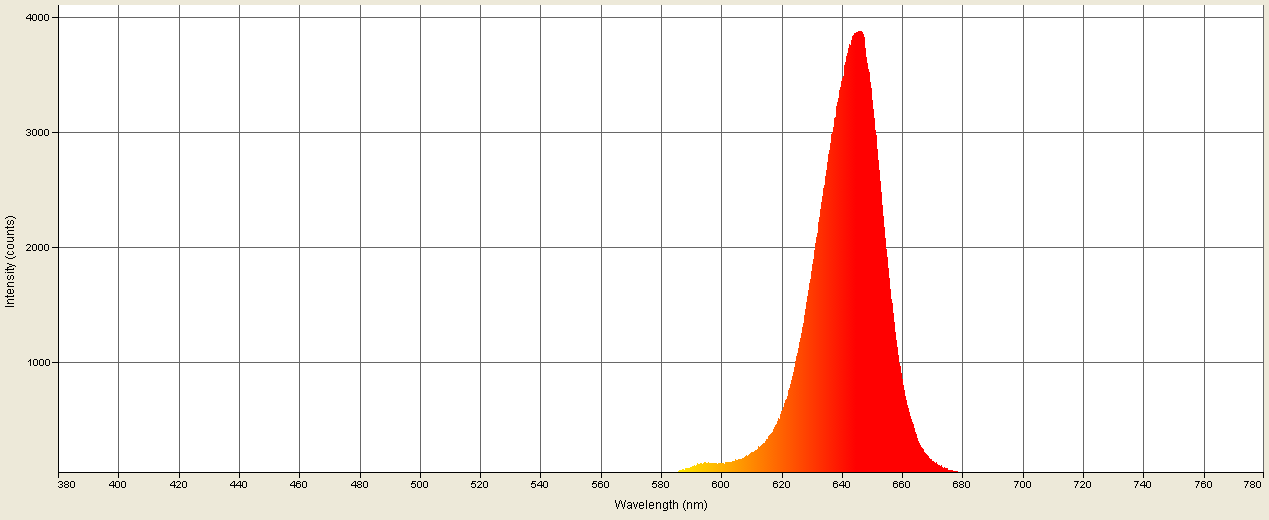

Spectrographic analysis of the red LEDs in the Bicycle Safety Flashing Light.


Spectrographic analysis
Spectrographic analysis of the LEDs in the Luxury Men's Fashion LED Digital Watch.


Spectrographic analysis
Spectrographic analysis of the LEDs in the Waterproof Red LED Digital Silicone Sport Wristwatch.


Spectrographic analysis
Spectrographic analysis of the LEDs in the Zombie Screamers (Lights & Scary Sound) Candy Dispenser.


Spectrographic analysis
Spectrographic analysis of the red, "Charge cycle in progress" LED in the GoPro Hero 3 White Action Cam.


Spectrographic analysis
Spectrographic analysis of the red, "Charge cycle in progress" LEDs in the Hexfly HX-A3 LiPo Battery Charger.


Spectrographic plot
Spectrographic analysis of the red LED in the Lazer Finger Light.


Spectrographic analysis
Spectrographic analysis of the LEDs in the Multifunction Bicycle Taillight.
