SPECTRA OF RGB (RED/GREEN/BLUE) LEDs
Spectrographic analysis of the LEDs in the Creative 3D Visulation Lamp (Pot Leaf), emitting red.
Spectrographic analysis of the LEDs in the Creative 3D Visulation Lamp (Pot Leaf), emitting green.
Spectrographic analysis of the LEDs in the Creative 3D Visulation Lamp (Pot Leaf), emitting blue.
Spectrographic analysis of the LEDs in the Creative 3D Visulation Lamp (Pot Leaf), emitting white.
Spectrographic analysis of the RGB LED in the Color Changing Cute Butterfly LED Night Light; this was as close to "white" as I was able to achieve.
Actually, my primary goal here was just to get all three colors on the graph simultaneously.
Peak wavelengths are 632.980nm (red), 546.070nm (green) and 456.110nm (blue)
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at bfly.txt
Spectrographic analysis of the RGB LED in the Romantic Lotus Flower Nightlight; set to appromximate "white".
Peak wavelengths are 631.660nm (red), 514.070nm (green) and 445.170nm (blue)
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at lotus.txt
Spectrographic analysis of the LED in the Color-Change Pop-Open Ghost with all three dice (light-emitting chips) on simultaneously.
The peak wavelengths are 632.650nm (red), 524.430nm (green), and 454.350nm (blue).
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at pog.txt
Spectrographic analysis of the LED in the Color-Change Pumpkin Lite displaying a reasonable approximation of "white".
Spectrographic analysis of the LED in the Illumibowl Toliet Nightlight displaying a reasonable approximation of "white".
Peak wavelengths are:
629.340nm (red die)
514.760nm (green die)
459.280nm (blue die)
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at i-bowl.txt
Spectrographic analysis of the LEDs in the Hypnocube Animated LED Cube (4Cube).
The peak wavelengths for each die are as follows:
629.340nm (red)
517.530nm (green)
465.610nm (blue)
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at /46/hypcube.txt
Spectrographic analysis of the red LEDs in the ''Squishy Pantone'' Jellyfish2 Color Lamp
Spectrographic analysis of the red LEDs in the ''Squishy Pantone'' Jellyfish2 Color Lamp
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at /46/pantoner.txt

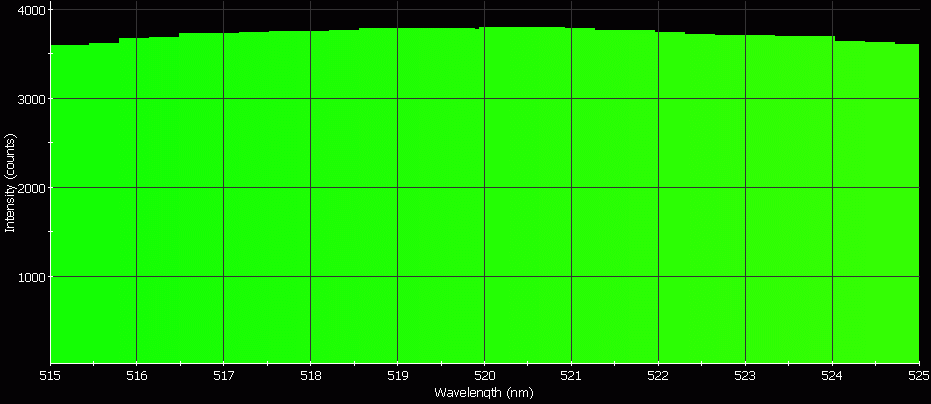

Spectrographic analysis of the green LEDs in the ''Squishy Pantone'' Jellyfish2 Color Lamp
Spectrographic analysis of the green LEDs in the ''Squishy Pantone'' Jellyfish2 Color Lamp
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at /46/pantoneg.txt
Spectrographic analysis of the blue LEDs in the ''Squishy Pantone'' Jellyfish2 Color Lamp
Spectrographic analysis of the blue LEDs in the ''Squishy Pantone'' Jellyfish2 Color Lamp
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at /46/pantoneb.txt
Spectrographic analysis of the LEDs in the Hypnosquare LED Array.
The peak wavelengths for each die are as follows:
627.680nm (red)
516.840nm (green)
465.610nm (blue)
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at /45/hypnosqr.txt
